£2,999

SPL-X 10

SPL-X can be seamlessly integrated into any audio environment. Whether in the studio, home theater or living room: you can rely on the bass of the SPL-X series.

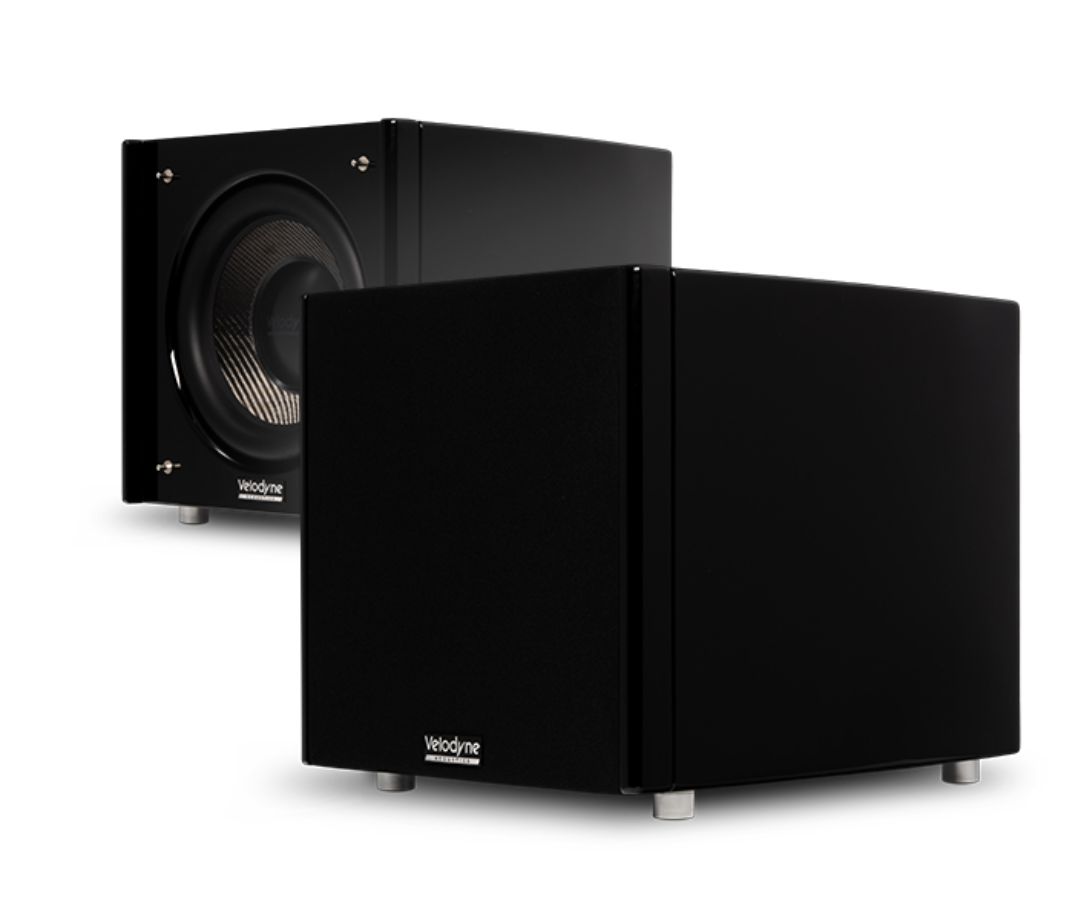

Velodyne Acoustics SPL-X 10

The subwoofer flagship from Velodyne Acoustics

The SPL-X subwoofer always provides the decisive low-frequency foundation in the system – and is immediately ready for use thanks to numerous presets. Thanks to XLR and RCA as well as high-level inputs, the SPL-X can be seamlessly integrated into any audio environment. Whether in the studio, home theater or living room: you can rely on the bass of the SPL-X series.

With the SPL-X series, Velodyne Acoustics redefines the subwoofer flagship and continues on the path of SPL Ultra and the legendary DD series

The high-end subwoofer series combines pioneering DSP technology, a powerful Class D power amplifier and carbon drivers with a fully parametric 6-band EQ. The automatic room calibration ensures linear, rich bass in every room and avoids distortion.

The SPL-X subwoofers deliver pure performance right down into the frequency range – with up to 1800 watts RMS and massive 4-inch voice coils on the larger models. The flagship drivers with dual-spider suspension and vented baskets guarantee maximum control, even at extreme levels. The volume, crossover frequency, phase and EQ can be conveniently controlled from the listening position via the free app.

The features

  • Powerful Class D amplifiers with up to 1800 W RMS for precise bass reproduction
  • Heavy-duty carbon drivers with 3- or 4-inch voice coils
  • DSP-controlled AutoEQ function with microphone for perfect room adjustment

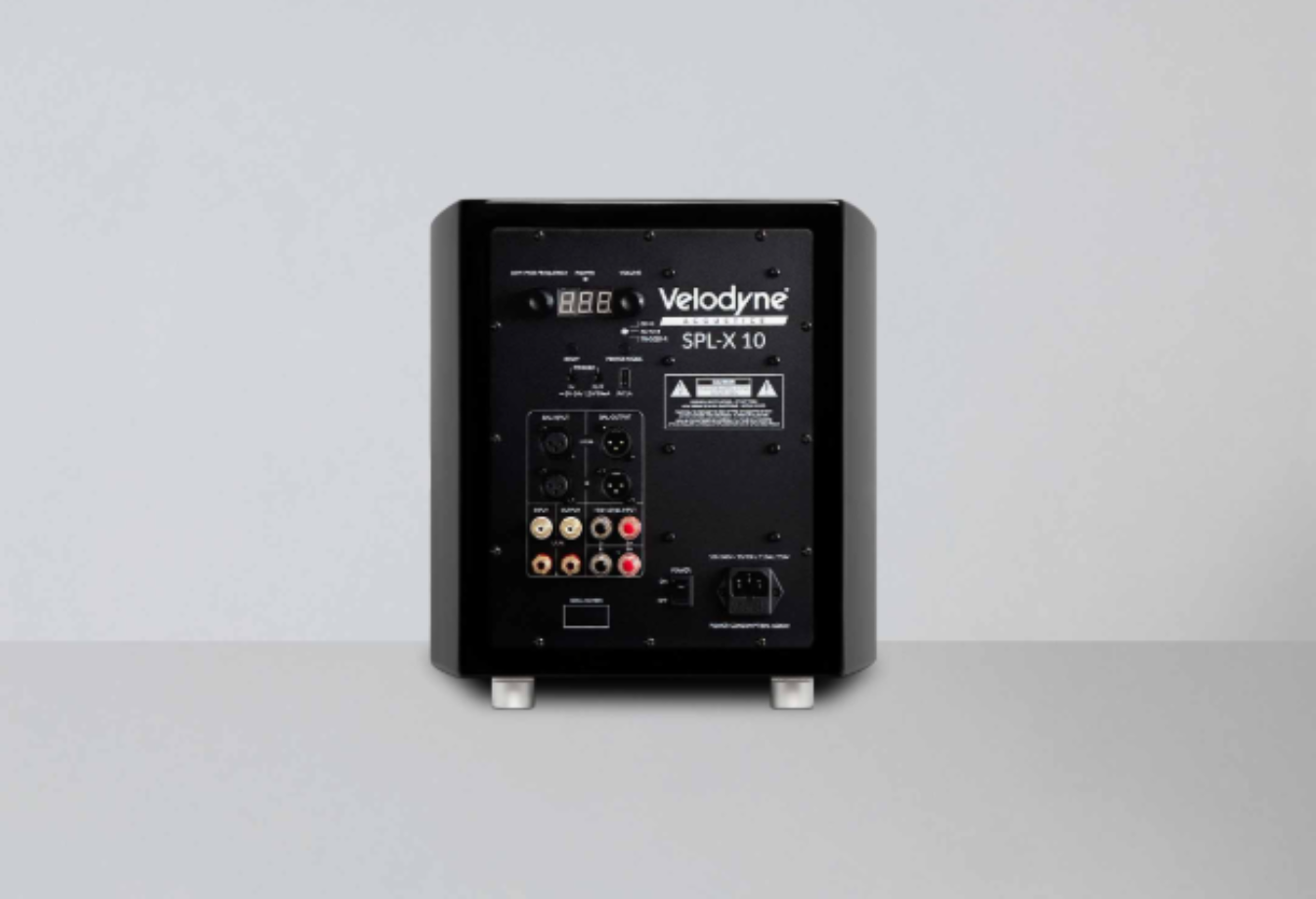

  • RCA LFE, RCA stereo, XLR LFE, XLR stereo and high-level inputs
  • App control with 6-band EQ, subsonic filter, high-pass filter and presets

Specifications

Woofer10″ high-performance driver, basket with three ventilation channels, carbon fiber cone, dual-spider Four-layer 3″/76mm voice coil Triple ferrite magnet system
HousingHDF closed, reinforced construction
AmplifierClass D 1000W RMS / 1500W Peak
Frequency response±10 dB: 18-300 Hz ±3 dB: 28-250 Hz
Low-pass filter30-200 Hz adjustable, 12/24/36/48 dB/octave
DelayAdjustable 0-500 ms
InputsRCA Stereo / LFE XLR Stereo / LFE High level stereo
OutputsRCA Stereo / LFE XLR Stereo / LFE
CoverBlack fabric grille, MDF frame
Auto power-onYes, sensitivity adjustable
Power switchAuto / Trigger / On
Voltage115V – 230V
Dimensions (WxHxD)360 x 340 x 440 mm
Weight30 kg
Shipping weight33 kg
