Marantz
£6,000

AMP10

Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.

  • Crafted in Shirakawa, Japan
  • 16 Channels
  • 200 Watts per Channel
  • Custom HDAM
  • Custom Switching Amplifiers
  • Selectable Output Modes
  • 5 Year Warranty

The Apex of Home Cinema

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Exquisite Design

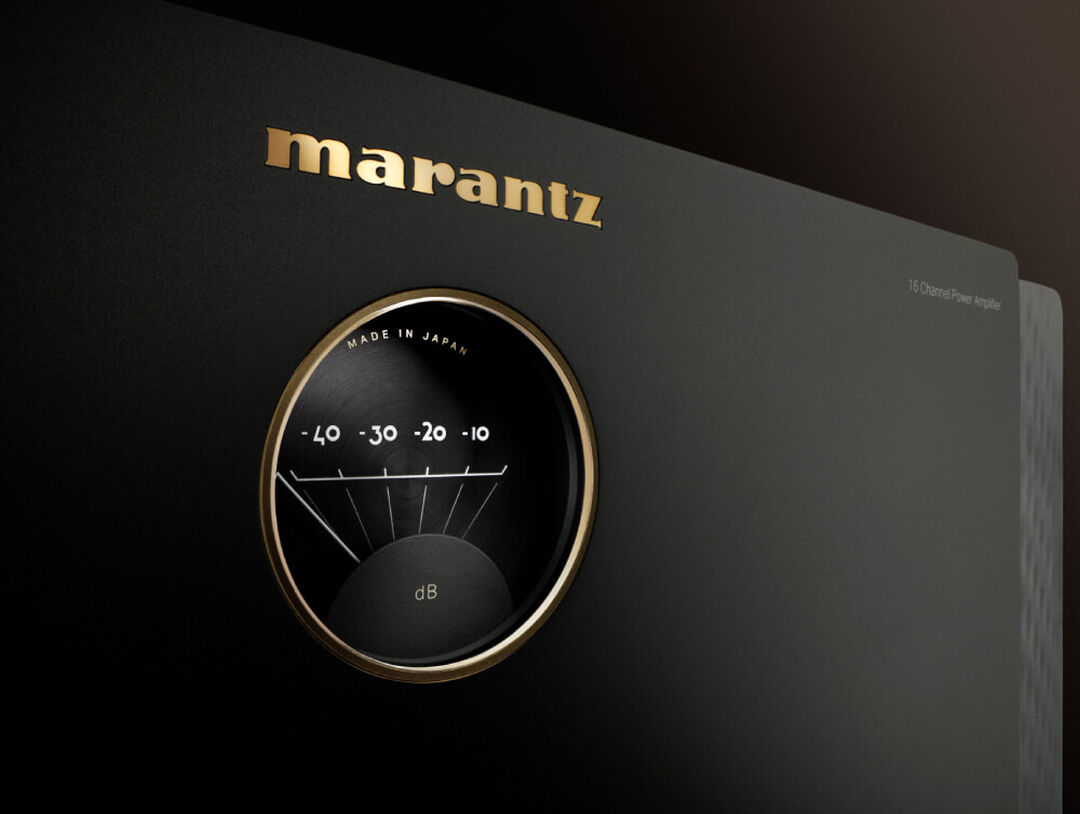

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Sound Master Tuned

The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader

AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

Specifications

Multi-Room CI
IP Control / RS232 Control / Web Control / App ControlNo / Yes / No / No
IR Flasher InYes
Marantz Remote BusYes
DC Trigger Input/ Output1 / 1
Others
Front DisplayLevel Meter
Firmware Update by Network / USB / RS232CNo / No / No
Auto Power offYes
Inputs Outputs
Main Amplifier inBalanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker TerminalSPKT-1+
Number of Speaker Terminals16
Bi-Amp Drive /BTL DriveYes / Yes
Level MeterYes
ChasissCopper Plated
Specifications
Number of poweramps16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W
70% Guarantee(Normal/Bi-Amp/BTL)Yes
100% Guarantee(Normal/Bi-Amp)Yes
General
Metal Front PanelYes
Pre-Programmed / Learnable / LCD DisplayNo / No / No
Power Consumption in W500
Power Consumption No-Sound in W140W
Standby Consumption in W0.2
Maximum Dimensions【 17.4 x 19.2 x 7.4 】
Weight in lbs.43.7
What's in the boxMain unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench
UPC code747192137519
