KEF
£1,700

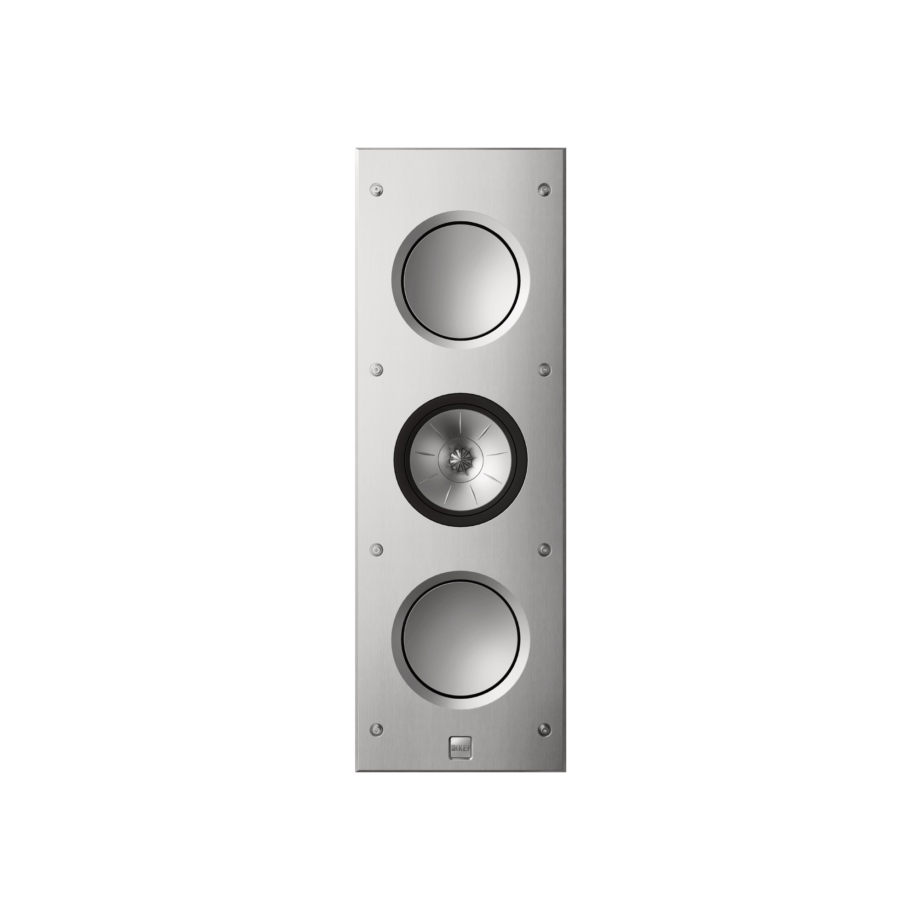

Ci3160RLM-THX

Ci3160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

THX® Certified Ultra Speaker with MAT™

The Ci3160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with two 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.

Metamaterial Absorption Technology

Absorbs 99% of the unwanted sound

Uni-Q®

Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly.

THX Certified

Ci3160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra.

Specifications

SeriesR Series
Nominal Impedance4Ω
Sensitivity (2.83V/1m)89dB
Frequency Response (±6 dB) open-backed43Hz - 28kHz
Frequency Range (-10 dB)33Hz - 45kHz
Nominal Coverage (degrees)150°
Crossover Frequency640Hz, 2.6kHz
Drive UnitsLF: 2 x 160mm (6.5in.) MF: 160mm (6.5in.) Uni-Q HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology1
Recommended Amplifier Power50 - 350 W
Recommended High-pass Filter (Hz)35Hz - 80Hz
Product External Dimensions (H X W X D)680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W)660 x 209mm (25.98 x 8.23in.)
Net Weight12 kg (26.4 lbs.)
Mounting Depth From Surface99mm (3.9in.)
Optional Rough In FrameRIF3160L
Ideal Rear Volume (L)60
Minimum Rear Volume (L)30
Max SPL (dB)110dB
CertificationTHX® Certified Ultra
Wall Thickness (Maximum)40mm (1.58in.)
Wall Thickness (Minimum)6mm (0.24in.)
Remarks1 Metamaterial Absorption Technology is a joint development with Acoustic Metamaterials Group. KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX, the THX logo, and Ultra are trademarks of THX Ltd. THX and the THX logo are registered in the U.S. and other jurisdictions. All rights reserved.
