DIMENSIONS7.87in x 1.52in x 10.0in (W x H x D)
(20.0cm x 3.9cm x 25.4cm)
WEIGHT4.2lb (1.91kg)
POWERMax consumption: 13W
Typical: 4.9W
High power standby: 3.8W
Lower power standby: 0.5W
External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground

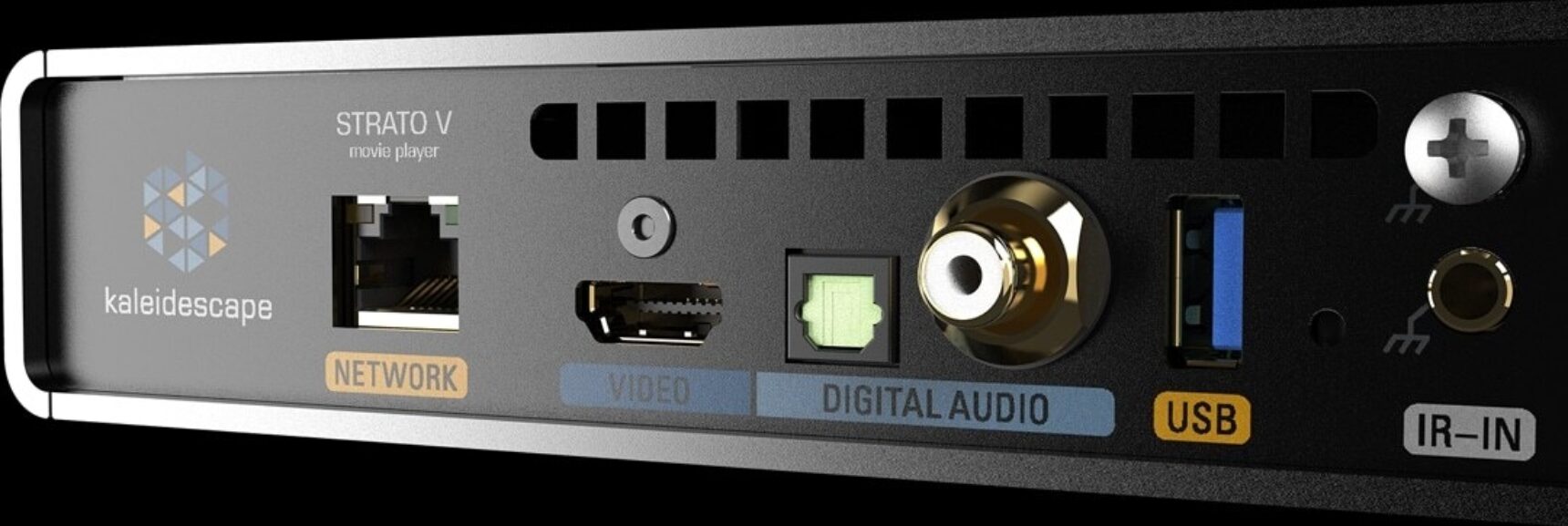

NETWORKGigabit Ethernet (1000 Base-T)
OTHER CONNECTIONUSB (for disc cataloging)
Chassis GND connections (X2)
CONTROLFront-panel IR receiver window
IR input (1/8in mini plug)
Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)
Lutron RA3 and HomeWorks control over Ethernet
ENVIRONMENTOperating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
Maximum operating altitude: 10,000ft (3,048m)
Heat output: 44 BTU/hr (13W) max
Airflow: 5 CFM (8.4 m3/hr) max
FAN NOISESilent in most installs, 17dB(A) when downloading in hot environments
VENTILATIONMinimum 1in (2.5cm) space at the front
Minimum 2in (5cm) space at the rear
MOUNTS (sold separately)Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space
Wall mount available for mounting behind TV displays
CERTIFICATIONSCSA 62368-1
IEC 62368-1
FCC CLASS B
CE
RoHS Compliant
VIDEO OUTPUTHDMI 2.1
HDCP 2.3 copy protection
VIDEO DISPLAY FORMATSResolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only
Color spaces: BT.2020, BT.709, BT.601
Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)
Movie playback up to 4K; UI in 2K
AUDIO OUTPUTSHDMI 2.1 (combined with video)
Digital (coaxial RCA and TOS-link connectors)
AUDIO FORMATS (HDMI Connector)Dolby Atmos
DTS:X
Dolby TrueHD
DTS-HD Master Audio
Dolby Digital Plus
DTS-HD High Resolution Audio
Dolby Digital
DTS Digital Surround
Dolby MAT PCM
PCM (up to 7.1ch, 96kHz/24-bit)
AUDIO FORMATS (Coaxial RCA and TOS-link connectors)PCM (2ch, up to 96kHz/24-bit)
STORAGEStandalone: Internal 960GB SSD (available storage for approximately 10 Kaleidescape high-bitrate 4K movies)
Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network
MEDIAKaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality
View recent HD additions for Strato V in the movie store
Current customers can also view their Strato V compatibility page in the movie store
