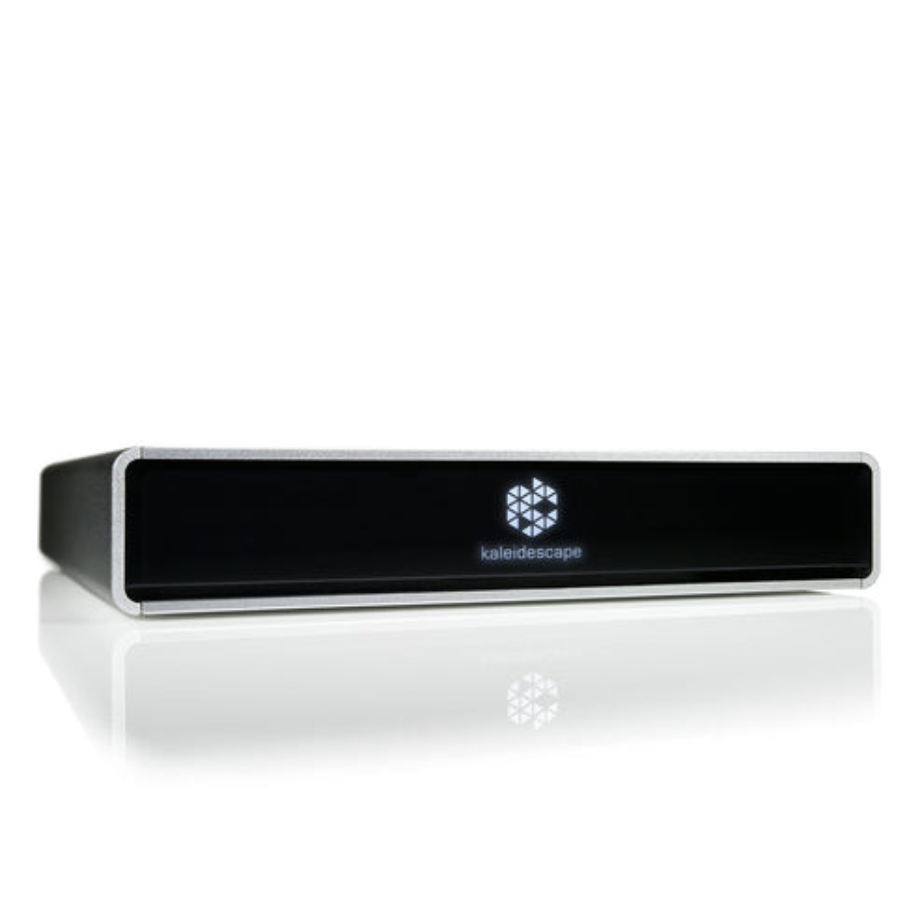

Kaleidescape Strato C Movie Player

Strato C is a 4K Ultra HD movie player that supports high dynamic range (HDR) and lossless multichannel audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

Strato C Movie Player

Strato C is a 4K Ultra HD movie player that supports high dynamic range (HDR) and lossless multichannel audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.

  • Requires server. Plays movies from Terra movie servers.
  • Reference 4K video. Supports 4K Ultra HD, SDR, and HDR10 formats.
  • Lossless audio. Clear dialog and immersive sound effects.
  • Scalable. Add more players for whole-house entertainment.
  • Separate HDMI audio out. Includes separate HDMI 1.4 audio output.

Technical Details & Specifications

DIMENSIONS7.87in x 1.52in x 10.0in (W x H x D) (20.0cm x 3.9cm x 25.4cm)
WEIGHT4.2lb (1.91kg)
POWERMax consumption: 20W Typical: 17W High power standby: 12W Lower power standby: 0.5W External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground
NETWORKGigabit Ethernet (1000 Base-T)
OTHER CONNECTIONUSB (for disc cataloging)
CONTROLFront-panel IR receiver window IR input (1/8in mini plug) Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems) Lutron RA3 and HomeWorks control over Ethernet
ENVIRONMENTOperating: 41 to 95°F (5 to 35°C) Storage: -4 to 140°F (-20 to 60°C) Relative humidity: 20 to 80% (operation) 5 to 90% (storage) Maximum operating altitude: 10,000ft (3,048m) Heat output: 68 BTU/hr (20W) max Airflow: 3.5 CFM (8.4 m3/hr) max
VENTILATIONMinimum 1in (2.5cm) space at the front Minimum 2in (5cm) space at the rear
MOUNTS (sold separately)Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space Wall mount available for mounting behind TV displays
CERTIFICATIONSCSA 62368-1 CSA 60950-1 IEC 62368-1 IEC 60950-1 FCC CLASS B CE RoHS Compliant
VIDEO OUTPUTHDMI 2.0a (labelled “VIDEO”) HDCP 2.2 copy protection
VIDEO DISPLAY FORMATSResolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only Color spaces: BT.2020, BT.709, BT.601 Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable HDR: HDMI 2.0a with support for SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata Movie playback up to 4K; UI in 4K

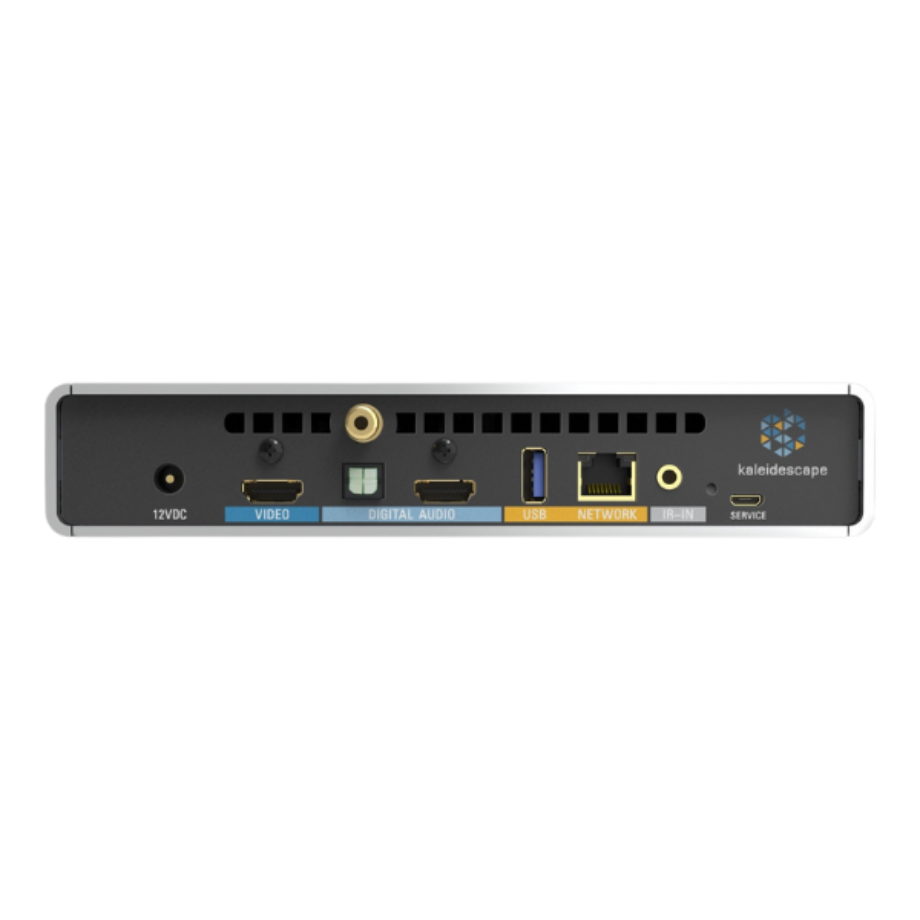

AUDIO OUTPUTSHDMI 2.0a (combined with video on the VIDEO connector) HDMI 1.4 (audio-only on the DIGITAL AUDIO connector) Digital (coaxial RCA and TOs-link connectors)
AUDIO FORMATS (HDMI Connector)Dolby Atmos DTS:X Dolby TrueHD DTS-HD Master Audio Dolby Digital Plus DTS-HD High Resolution Audio Dolby Digital DTS Digital Surround Dolby MAT PCM PCM (up to 7.1ch, 96kHz/24-bit)
AUDIO FORMATS (Coaxial RCA and TOS-link connectors)PCM (2ch, up to 96kHz/24-bit)
STORAGENo internal storage. Strato C accesses content stored on a Terra or Strato (with internal storage) when connected via network
MEDIAKaleidescape movie store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without high dynamic range (HDR), and movies that meet or exceed the quality available on Blu-ray Disc and DVD
