£86,000

2160

Great products don’t just appear out of nowhere, they evolve, built on the foundations of things that came before them.

2160

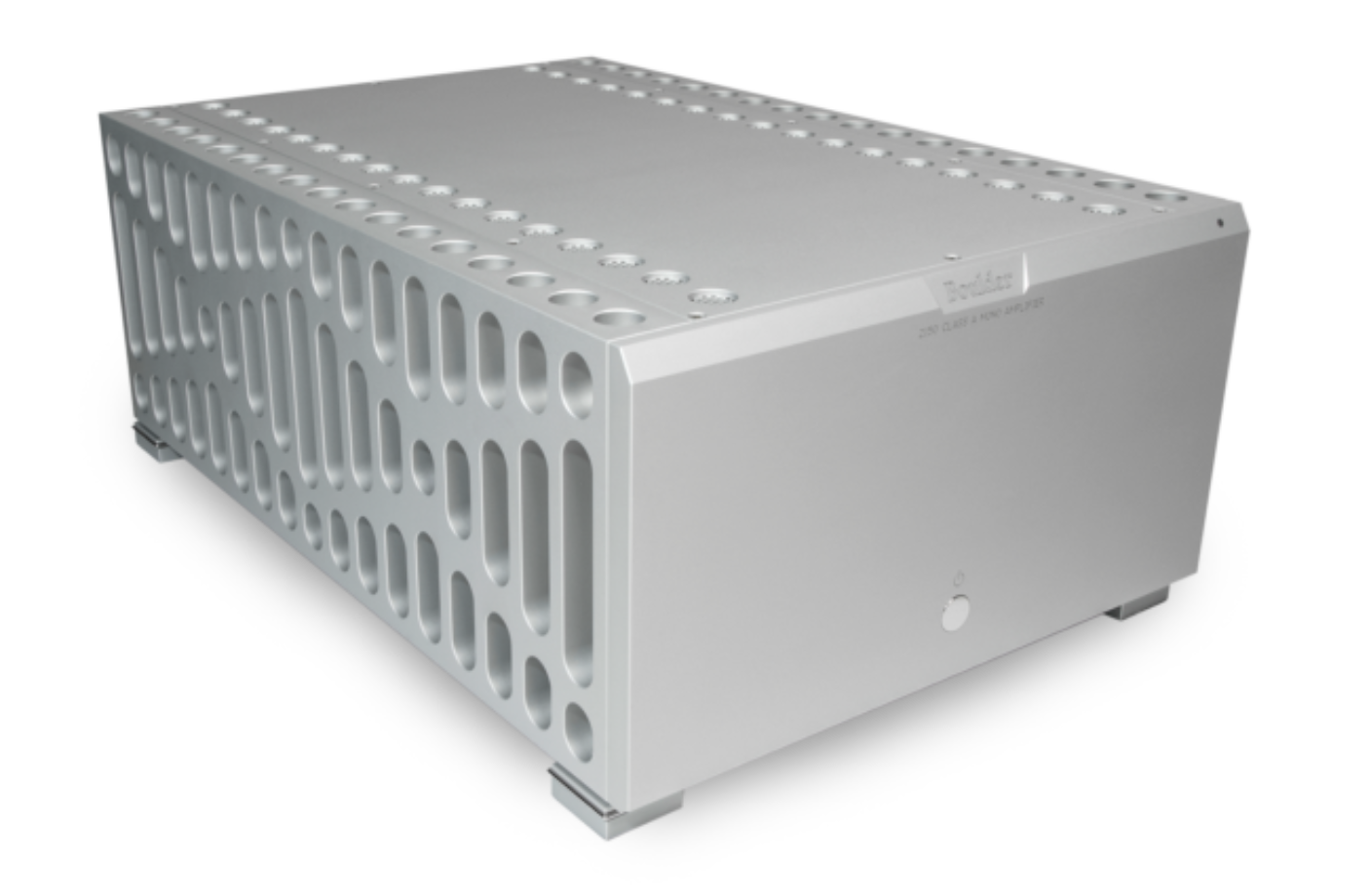

Stereo Power Amplifier

Great products don’t just appear out of nowhere, they evolve, built on the foundations of things that came before them. The Boulder 2160 Stereo Amplifier replaces and surpasses in every way the venerable 2060, a brilliant amplifier that earned dozens of awards world-wide. All of the electronics have been updated with leading-edge technology while the look has evolved with style that is both subtle and elegant.

The 2160 remains uniquely Boulder. That is, it looks, feels, and sounds better than anything you’ve ever heard.

Features

  • Bias operation is Class-A to full rated output power and managed with an analog circuit that minimizes heat and power consumption
  • Non-resonant chassis carved from solid blocks of aluminum on Boulder's own CNC machining centers
  • Power cycling, turn on sequencing, and status messages sent to Boulder preamplifier displays via the Boulder Link communication system
  • Dual stage design incorporates the majority of gain in the first stage to maximize bandwidth and minimize distortion
  • Boulder's most powerful, continually produced stereo amplifier: 600W per channel
  • Four fully-discrete 99H2 gain stages, potted and housed in machined shells for thermal stability and shielding
  • 12V trigger connection for remote turn-on and use with most surround sound processors and external control systems
  • Two pairs of speaker connections per channel to accommodate bi-wired loudspeakers
  • Surface-mount circuit board design minimizes connection resistance and lead inductance
  • Two massive transformers are filtered, potted, and enclosed in a welded steel case
  • Supervising microprocessor circuitry controls and monitors protection systems, and the turn-on and turn-off of any linked amplifiers
  • Fully-balanced design from the inputs to the outputs substantially reduces distortion and noise

Specifications

Peak Power, 8 ohms600W
Peak Power, 4 ohms1200W
Peak Power, 2 ohms2400W
THD, 8 ohms, 600W20-2 kHz: 0.0008%, 20 kHz: 0.0040%
THD, 4 ohms, 600W20-2 kHz: 0.0012%, 20 kHz: 0.0065%
THD, 2 ohms, 600W20-2 kHz: 0.0018%, 20 kHz: 0.0100%
Equivalent Input Noise (EIN), 20 kHz BW1.5 μV
Magnitude Response, 20 to 20 kHz+0.00, -0.04 dB
Magnitude Response, - 3 dB at0.015 Hz, 200 kHz
Voltage Gain26 dB
Input ImpedanceBalanced: 200kΩ Unbalanced: 100kΩ
Common Mode Rejection (balanced only)60 Hz: 90 dB, 10 kHz: 70 dB
Inputs3-pin balanced XLR
Output Connectors2 sets of 6 mm / .250-inch wingscrews
WeightAmplifier: 220 lbs. (99.8 kg) Shipping: 319 lbs. (144.7 kg)
Power Requirements100, 110-120, 220, 240 VAC, 50-60 Hz 250W nominal, 5000W at maximum output
Amplifier TopologyPure Class A to full rated output
