£8,000

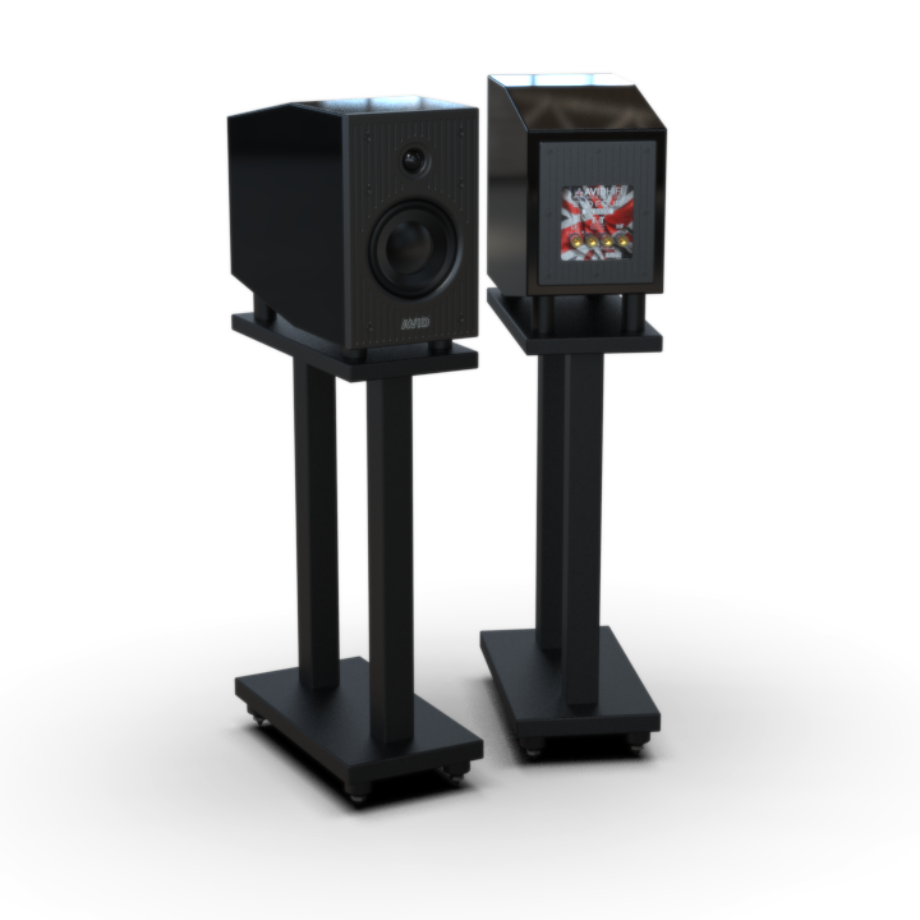

EVO FOUR

First impressions are important, and our compact EVO FOUR impressively reproduces music with such scale, you will believe they are a much larger loudspeaker.

First impressions are important, and our compact EVO FOUR impressively reproduces music with such scale, you will believe they are a much larger loudspeaker.

Utilising the development of our Reference loudspeakers, it quickly reveals an incredible bass power, speed and clarity that will make you marvel over your most treasured music.

Elegant Lines

Beautifully but purposefully styled, the hand crafted, angled cabinet eliminates internal standing waves, with strategically placed bracing maintaining cabinet rigidity, reducing resonance interfering with your musical enjoyment.

Cascaded from our Reference series, the drivers are mounted on precision machined 20mm thick aluminium front baffles, kept narrow to minimise sound interference, with the solid aluminium rear baffle rigidly mounting the high quality crossover.

CLARITY OF SOUND

Channelling unwanted vibration that you normally feel in the loudspeaker cabinet to our Tuned Mass Technology (TMT™) damping element ensures that everything, especially the cone itself remains free of colouration and the sound remains pure and smooth.

Reflex loading optimises low frequency performance and our angled tuned port fires below the cabinet onto the diffusing plate minimising location issues and producing a wonderful unfatiguing clarity of sound.

Key Features

  • Tuned Mass Technology™
  • Silk Soft Dome Tweeter
  • Reflex Loaded Bass Driver

Specifications

HF DRIVER:1x 28mm (Acuflex™ hand coated soft dome)
MF/LF DRIVER:1x 160mm (75mm Titanium Voice Coil Former)
FREQUENCY RESPONSE:43Hz - 20KHz ±3dB
SENSITIVITY:87dB @2.83V/1m
RECOMMENDED POWER:30 - 150W
IMPEDANCE:
CROSSOVER TOPOLOGY:2 WAY, 2ND ORDER
CABINET CONSTRUCTION:ALUMINIUM PLATE FRONT AND REAR. MRMDF PRECISION HAND-CRAFTED CABINET
DIMENSIONS:363 x 200 x 449mm (HXWXD)
FINISHES:BLACK FRONT/REAR BRUSHED ANODISED BAFFLE. BLACK OR WHITE GLOSS FINISHED CABINET
NET WEIGHT:15 KG
